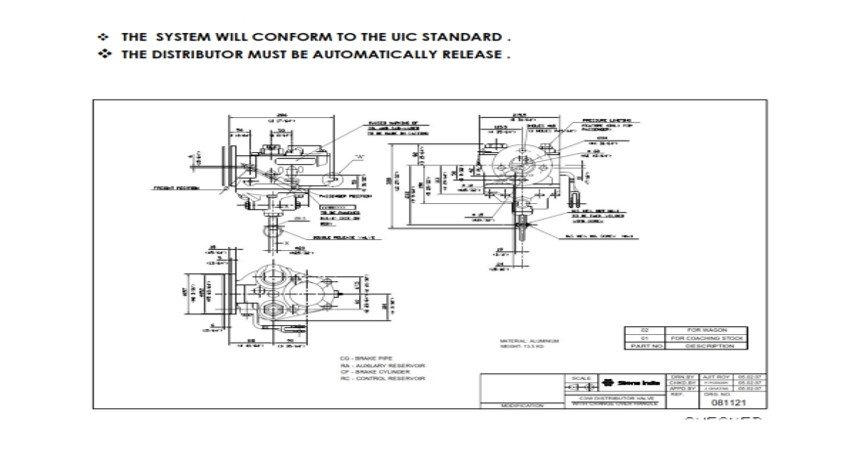

Distributor Valve Drawing

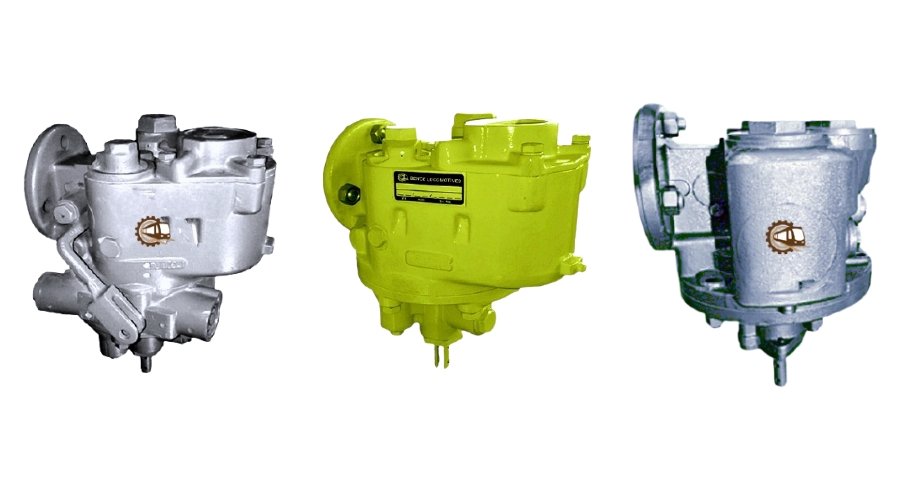

Distributor Valve is a graduated release UIC approved Distributor Valve for universal type in the Coach Brake System used for initiating the brake application. It is designed as per International Standard used for passengers and wagons, both.
Types of Distributor Valve
1. Distributor Valve Type I (EST)– UIC
| Types | |
| Est 4di/p/HBG | Est 4di/p |
| Est 4di/g/HBG | Est 4di/g |
| Est3f/g/HBG | Est3f/g |
| Est3f/p/HBG | Est3f/p |
| Est3e/g/HBG | Est3e/p |
| Est3e/p/HBG | Est3e/g |
2. Distributor Valve – UIC
The Distributor Valve offers the same qualities of security & reliability, even at low temperature, and high sensitivity as recognized by SNCF and many other Administrations. The meets the many specifications laid down by the U.I.C. in order to be accepted for international traffic.
3. Automatic Two Stage Distributor Valve Type IV
The Distributor Valve offers the same qualities of security & reliability, even at low temperature, and high sensitivity as recognized by SNCF and many other Administrations. The meets the many specifications laid down by the U.I.C. in order to be accepted for international traffic.
